DN25風機盤管軟連接
Fan coil soft connection

上海淞江減震器集團有限公司官方網站為您介紹：DN25風機盤管軟連接信息，淞江集團為眾多星級酒店、機場、廣場等項目暖通系統配套風機盤管軟連接產品，該產品具有良好的減震效果，也保護了風機的長期使用壽命。
Shanghai Songjiang absorber group limited official website introduces for you: DN25 fan coil soft connection information, Songjiang group for many star hotels, airports and plazas HVAC systems supporting fan coil soft connection products, the product has a good damping effect, long and also protect the fan.

性能介紹：
公稱通徑：DN25mm
自然長度：250mm
軸向壓縮：10mm
軸向伸長：5mm
橫向位移：20mm
偏轉角度：45°
Performance introduction:

產品介紹：

1.產品名稱：DN25風機盤管軟連接

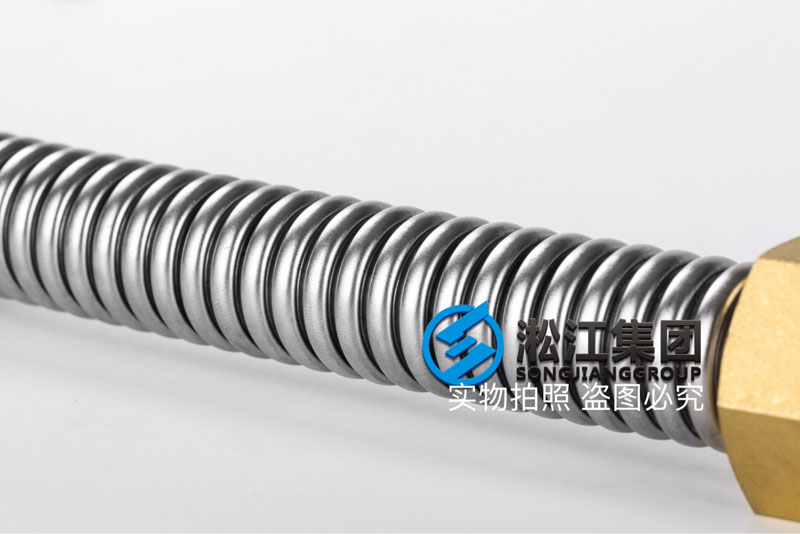

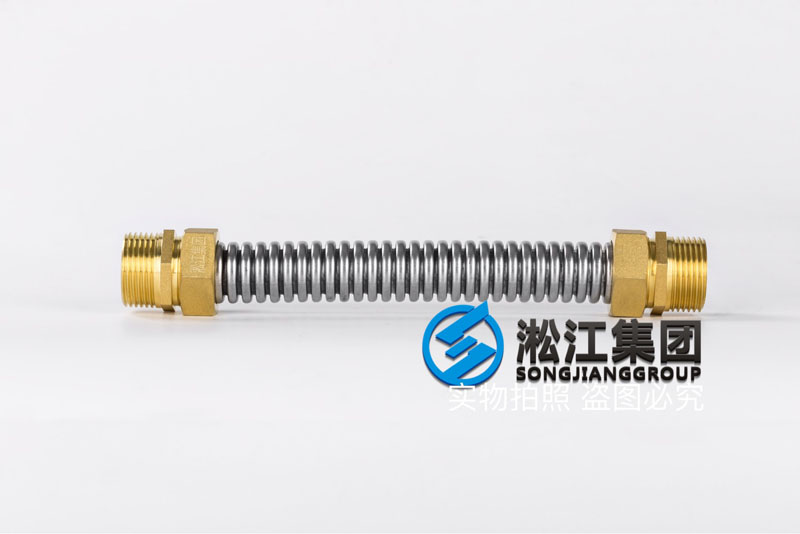

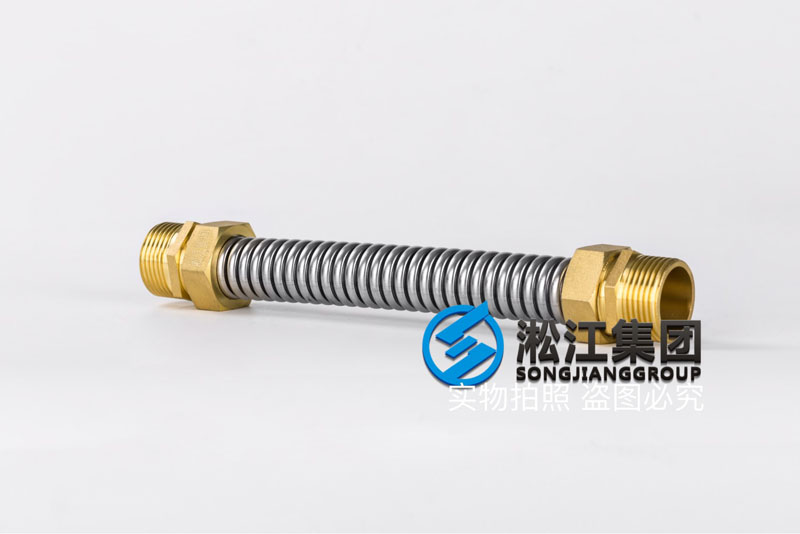

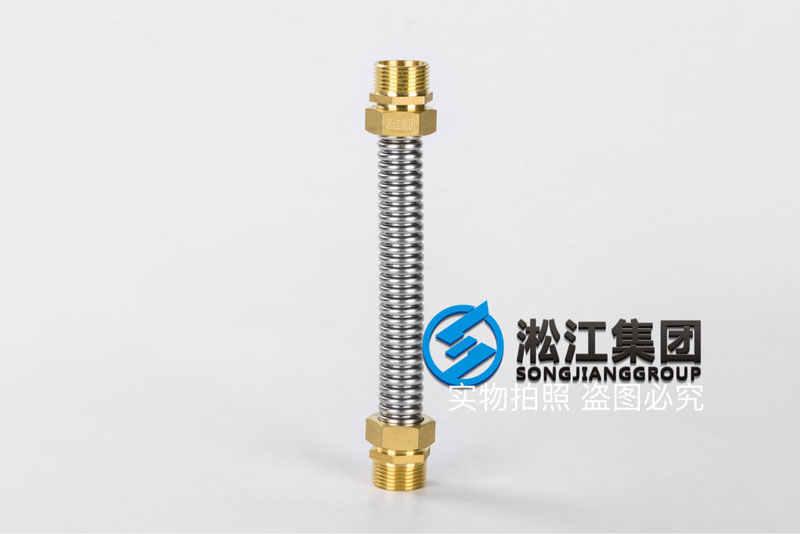

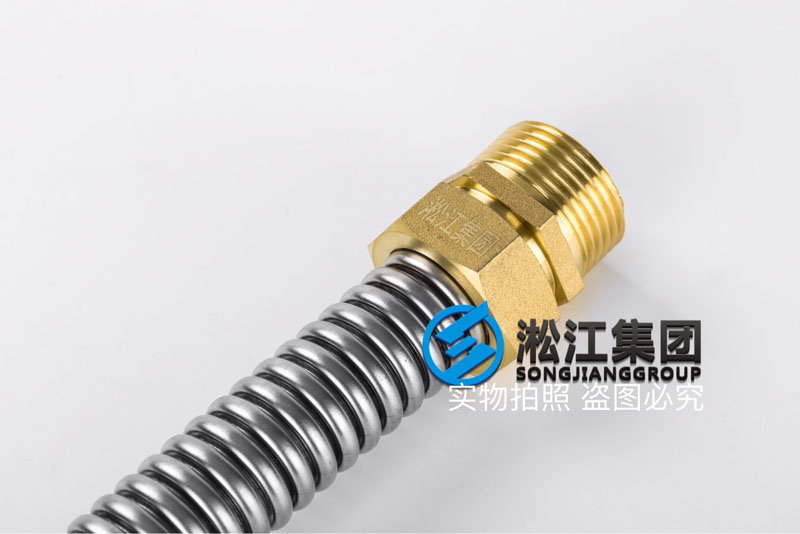

2.產品圖片：見上圖

3.產品結構：內螺紋接頭+外絲

4.產品.點：無需焊接，可按需要長度自行裝配

5.產品通徑：DN10~DN50

6.制作長度：100mm~1000mm

7.產品材料：

①六角接頭：銅

②六角螺母：銅

③密封墊圈：硅橡膠

④波紋管：SUS304
Product introduction:

1. Product Name: DN25Fan coil soft connection

2. product picture: see the picture above

3. product structure: internal thread joint + outer wire

4. product features: without welding, it can be assembled according to the required length

5. product path: DN10~DN50

6. production length: 100mm~1000mm

7. product materials:

Six angle joint: Copper

Six angle nut: Copper

sealing washer: silicone rubber

Bellows: SUS304

以上DN25風機盤管軟連接信息來源于上海淞江減震器集團有限公司官方網站金屬軟管產品中心，如需了解更多請點擊：高品質金屬軟管
The above DN25 fan coil soft connection information comes from the metal hose center of the official website of Shanghai Songjiang shock absorber Group Co., Ltd.
